What is a calving jack?

It is a device used to facilitate the extraction of the calf during a difficult birth of the cow. The causes of difficult calving are multiple: the calf is too large, the cow has no or very few contractions, the cow's cervix is too narrow, etc.

Using a calving jack

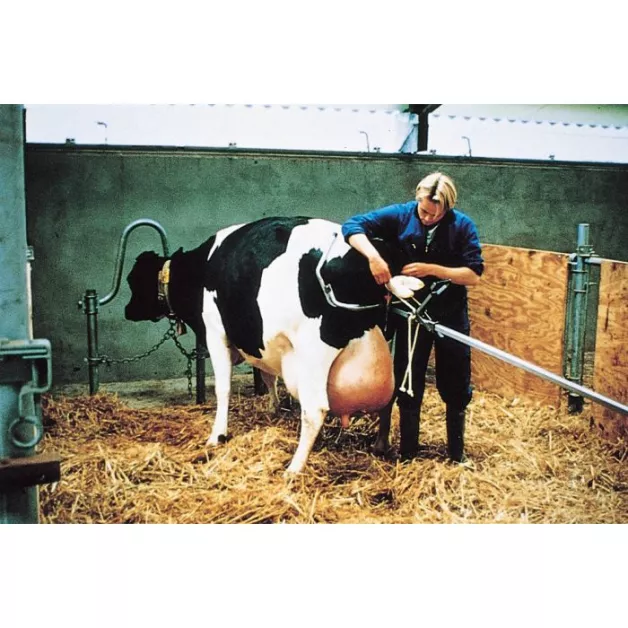

When it is realized that the cow is having difficulty giving birth on her own, a calving jack is used to assist her. Its use is quite simple; the support part must be positioned against the cow's hindquarters, with the open side facing up (if the model has an open support), to frame the pelvic bones of the support. The ropes provided are then used to attach one side to the calf's legs and the other to the hooks that pull when the lever is operated. Thus, the calf is gradually extracted from its mother.

Precautions to take during calving

Be careful, too much force can damage the cow, her calf, or the device. It is therefore useful to know how to assess whether the use of the device is possible or if a cesarean is necessary.

It is recommended to ensure enough space around the animal during calving to avoid having to use the tube at more than 30 degrees laterally, which could also damage the device.

Characteristics of HK 2020 Calving Jacks

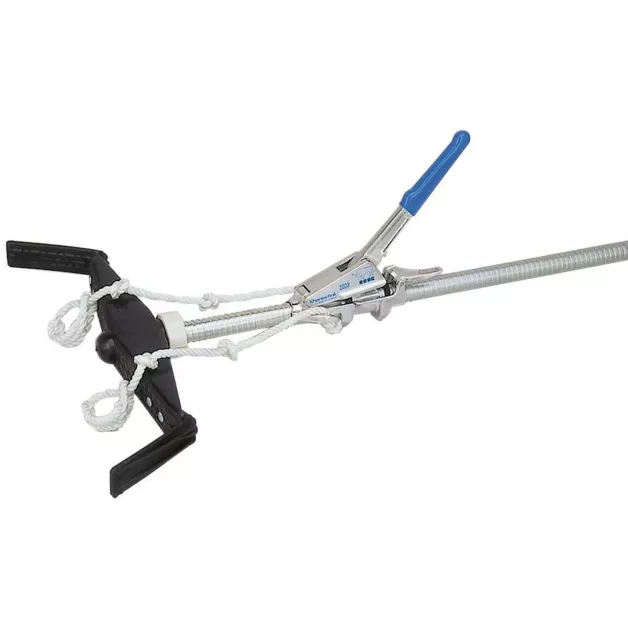

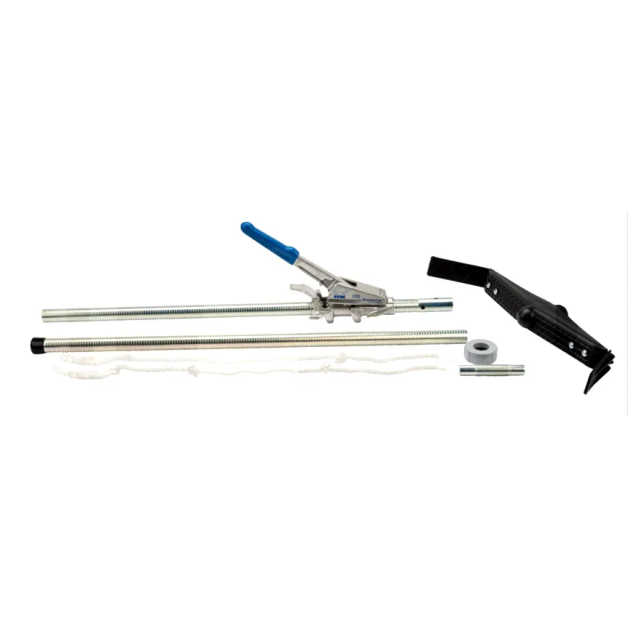

HK 2020 Calving Jack with PVC support, Alternative Movement

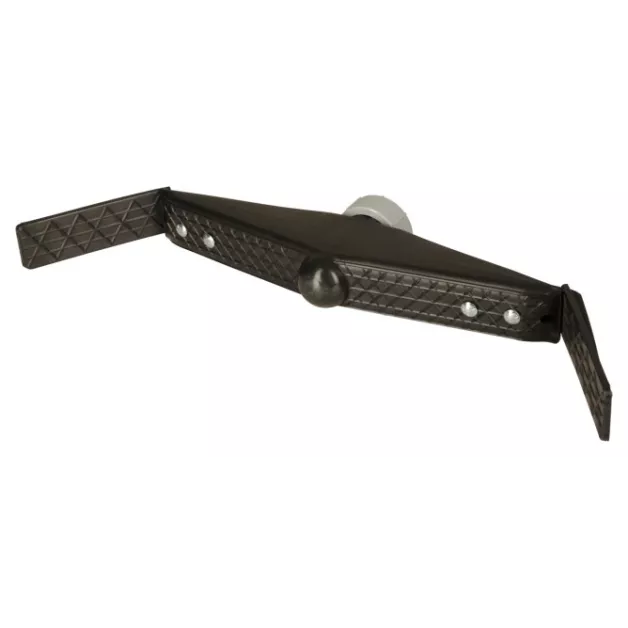

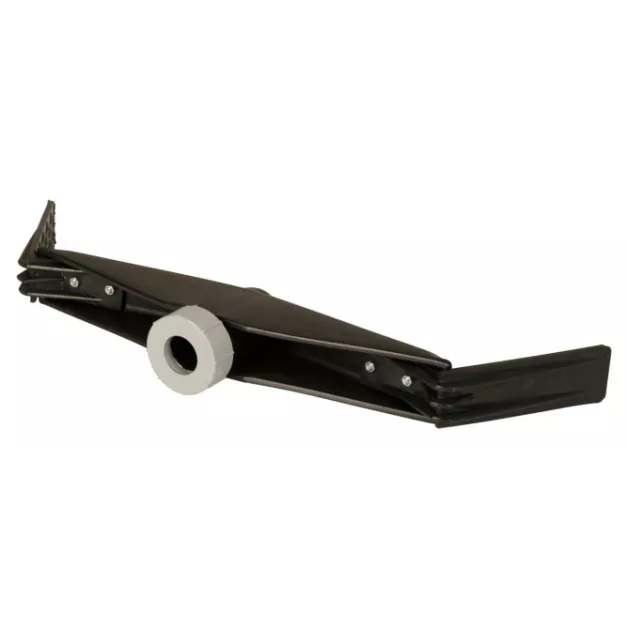

• Robust PVC support with lateral fins
• Reinforced notched tube 1.80m long
• With 2020 mechanism
• Weight: 5.900kg

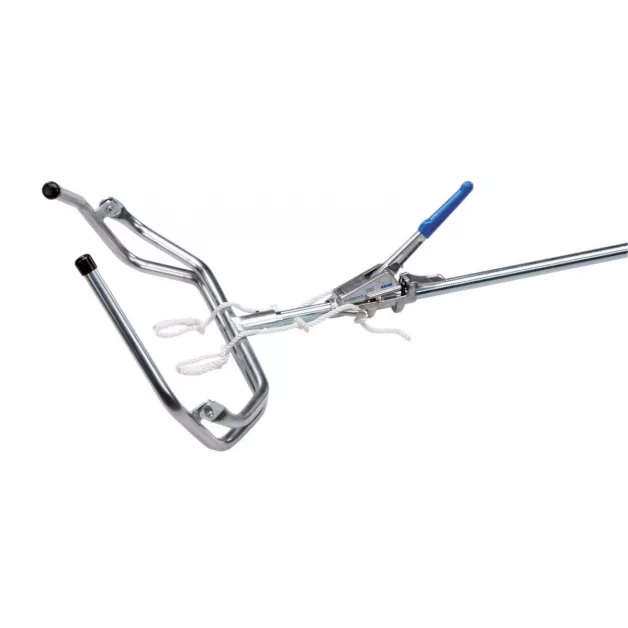

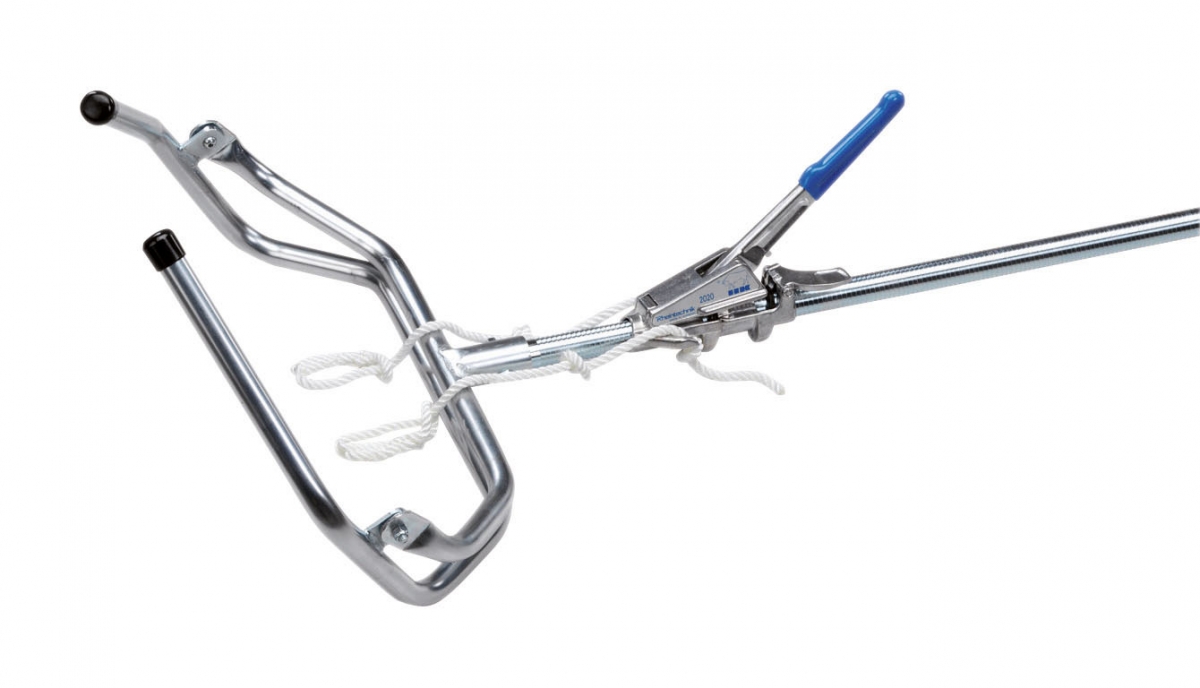

HK 2020 Dairy Breed Calving Jack 10130 + 106820

• Swivel bracket allowing flexible support and adaptation on the animal
• Bracket size: 52cm
• With 2020 mechanism
• Reinforced notched tube 1.80m long
• Weight: 10.00kg

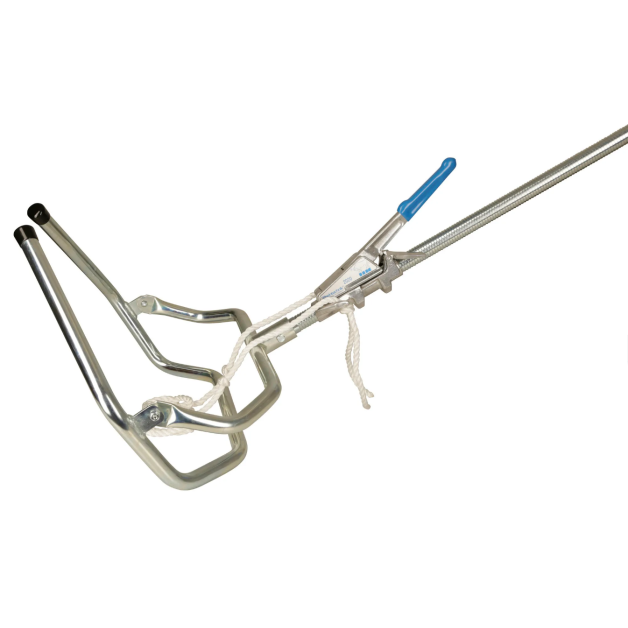

HK 2020 Meat Breed Calving Jack 10130 + 106820

• Swivel bracket allowing flexible support and adaptation on the animal
• Bracket size: 57cm
• With 2020 mechanism
• Greater sturdiness of the reinforced notched tube 1.80m long
• Weight: 10.00kg

The advantages of the swivel bracket

The HK 2020 calving jack with its swivel bracket represents a significant advancement in the field of assisted calving. This bracket, with its ability to swivel, provides adaptable and flexible support, perfectly adjusting to the contour of the animal, ensuring a secure and comfortable grip. This innovative design greatly facilitates the use of the calving jack, making the experience less stressful for both the cow and the operator. The perfect grip of the bracket prevents any slipping, thereby reducing the risk of slips and accidents during calving, ensuring better safety for the animal and greater efficiency of the process.

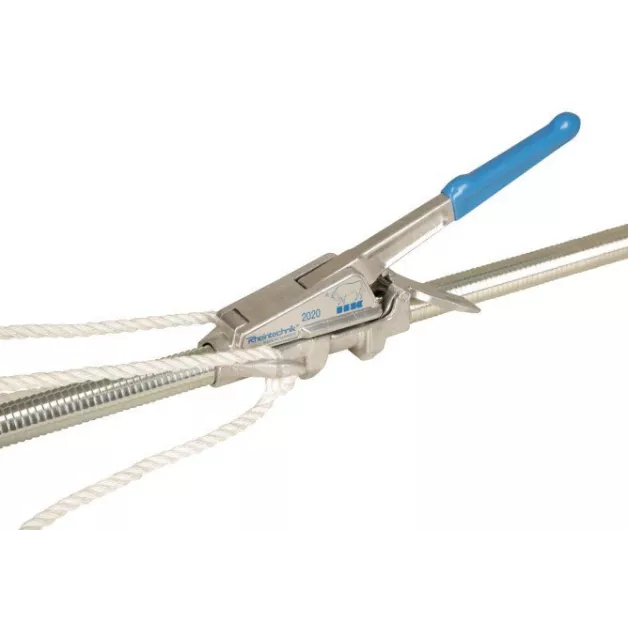

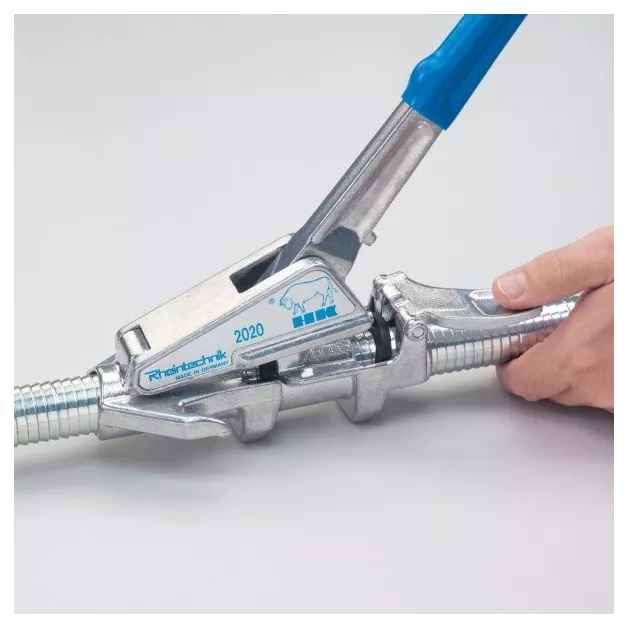

Features of the 2020 mechanism

The 2020 mechanism is the core of the HK 2020 calving jack, integrating a series of three hooks that allow both alternate and simultaneous traction, thus optimizing the efficiency of calf extraction. Designed to react quickly, this mechanism is equipped with an instant disengagement function, which is crucial in case of unforeseen complications during calving, allowing the operator to release the traction immediately and safely. The flexibility of the bracket, combined with the lightweight and resistant aluminum mechanism, ensures seamless adaptation to all situations, offering better maneuverability and increased durability of the device.

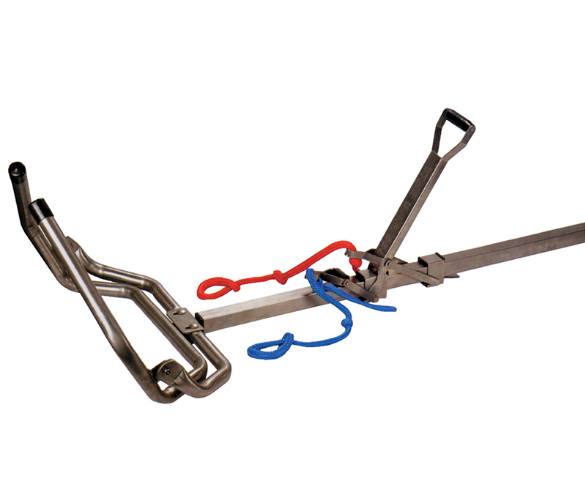

Characteristics of VINK Calving Jacks

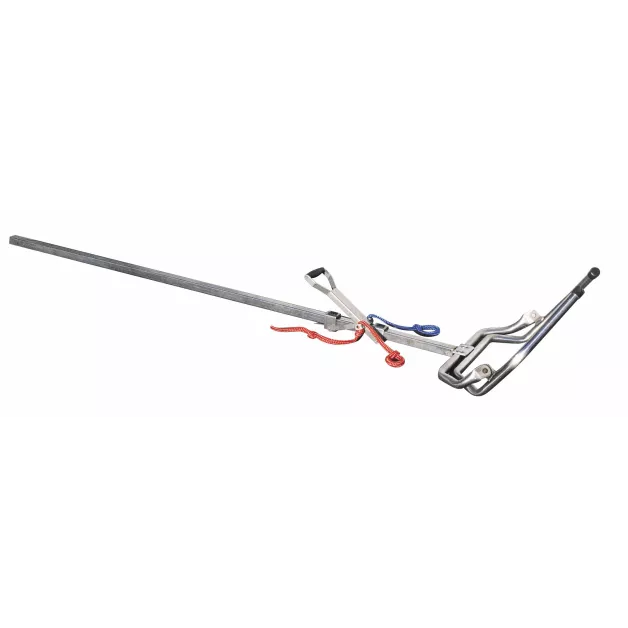

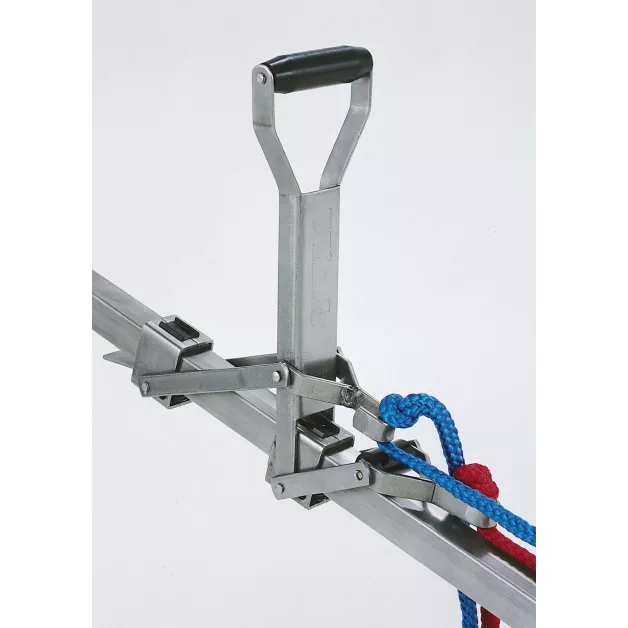

VINK Alternative Dairy Calving Jack 1.80m

• Made entirely of stainless steel
• Effective and durable operation
• Robustness of the square rod (30mm)
• Significant traction force, power of 300kg
• Possibility to pull upwards or downwards
• There are 2 hooks that activate alternately by lever traction
• It does not slip
• You have both hands free, allowing you to work alone
• Weight: 8.00kg

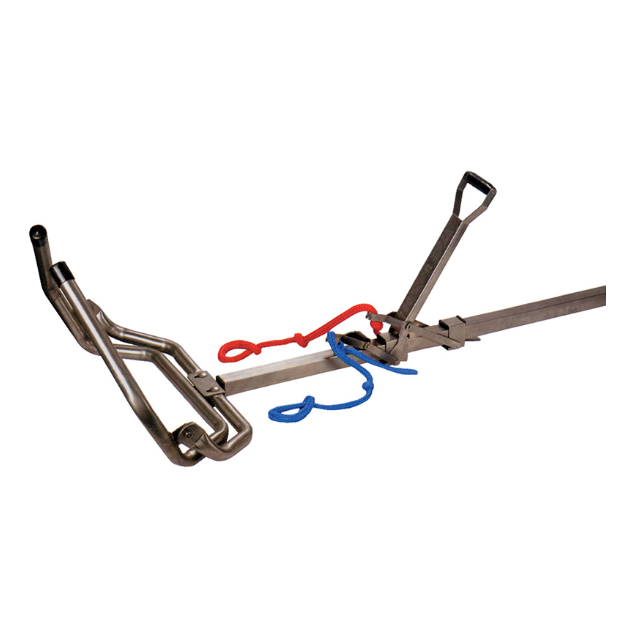

VINK Alternative Meat Calving Jack 1.80m

• Made entirely of stainless steel
• Effective and durable operation
• Greater robustness of the square rod (35mm)
• Its traction force is greater, power of 500kg
• Possibility to pull upwards or downwards
• Alternative traction mechanism, adapted to release the calf "leg by leg" She does not slip.
