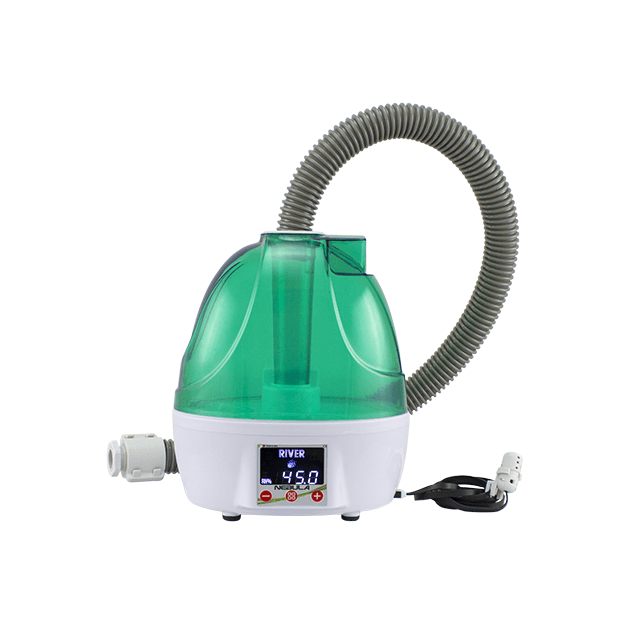

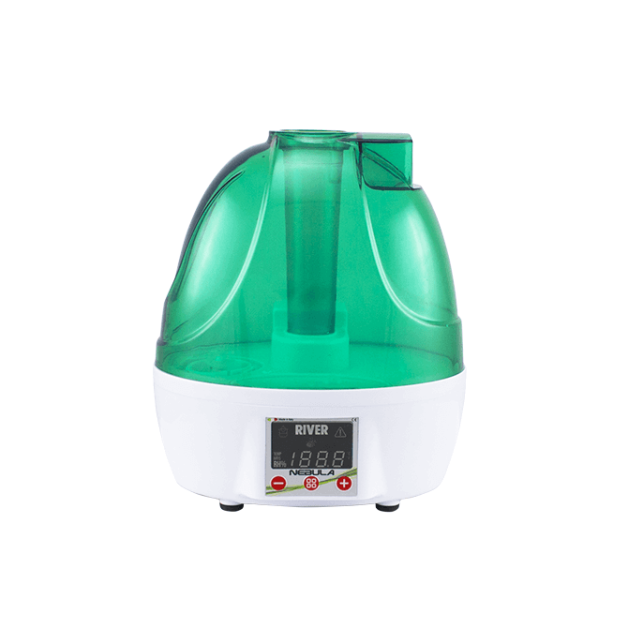

Nebulizer Nebula for River Incubators automatic humidification

Operation of our Nebula

The patented NEBULA system provides humidity control that keeps the programmed value constant once reached, without producing significant temperature fluctuations, which are undesirable during the incubation process. NEBULA, in fact, thanks to its continuously variable system, uses an ultrasonic generator to supply energy to the water, producing microscopic droplets (mist effect). These droplets, passing into the incubator through a provided pipe, vaporize immediately upon contact with the heat produced by the incubator, thus creating humidity. The incubator's fan homogenizes the humidity inside it. Furthermore, the operation of NEBULA is not affected by the surrounding space conditions.

Technical characteristics

• Voltage: 230 Volts 50/60 Hz single-phase
• Maximum power: 18 Watts AC
• Average consumption per day: max. 0.2 kW/24 hours
• Degree of protection: IPX4
• Body: plastic material
• External wiring: two-pole power cable with double insulation; male mini USB cable (sensor)
• Display: digital humidity control with decimal point and incubation days • Humidity sensor: with precision +/- 3%

Advantages

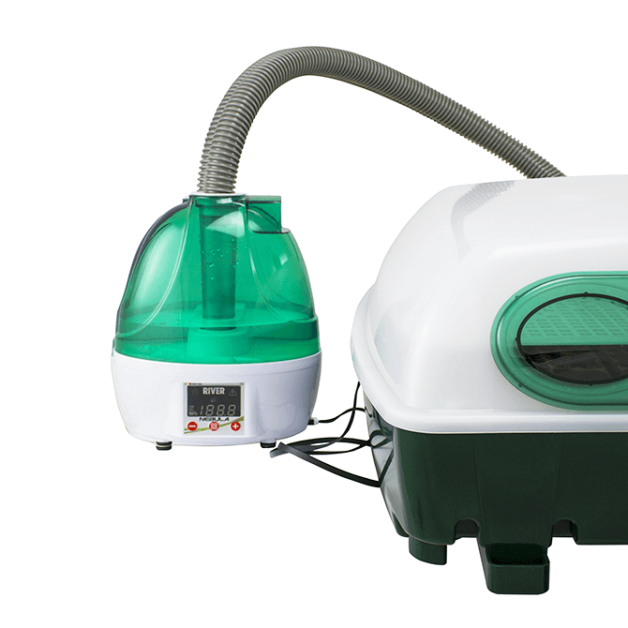

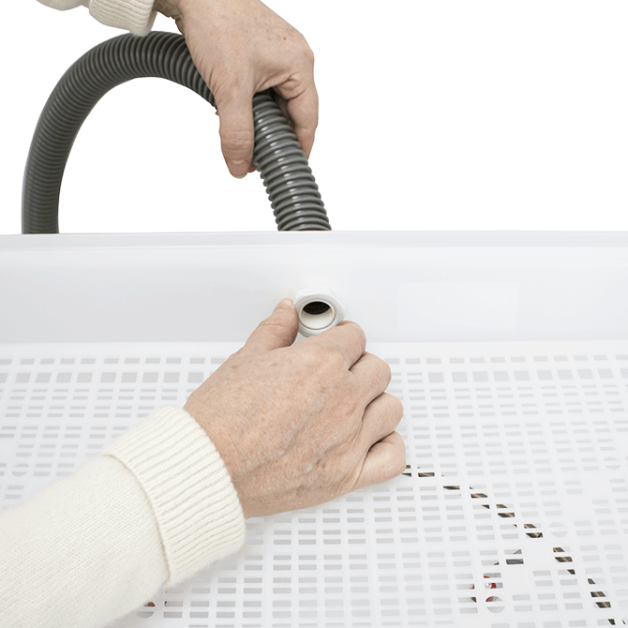

• Easy connection to the incubator The connector and ring secure NEBULA® to any incubator (small and medium size) via a ø23mm hole
• Large display allows adjusting humidity from 30% to 90% and displaying incubation days. It also shows the intensity of NEBULA®'s operation and alerts

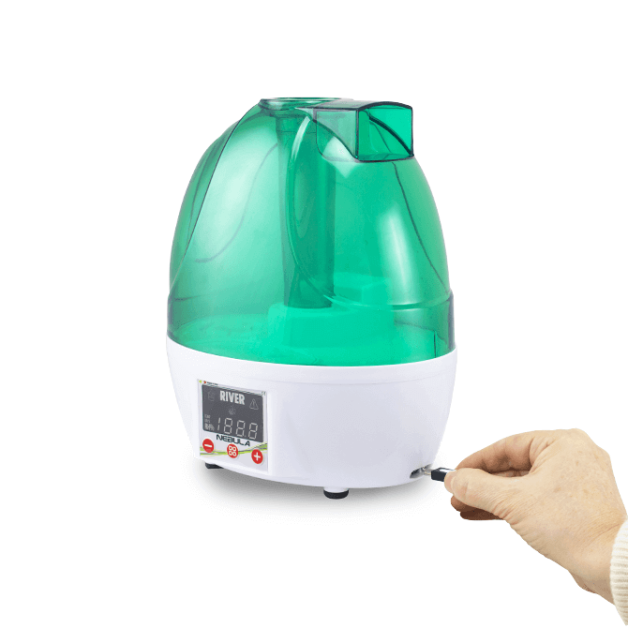

• Mini-USB for humidity sensor Connects NEBULA® to the humidity sensor to be inserted into the incubator.
• Flexible hose Connects NEBULA to the incubator to transfer the microdroplets produced by the ultrasonic generator inside

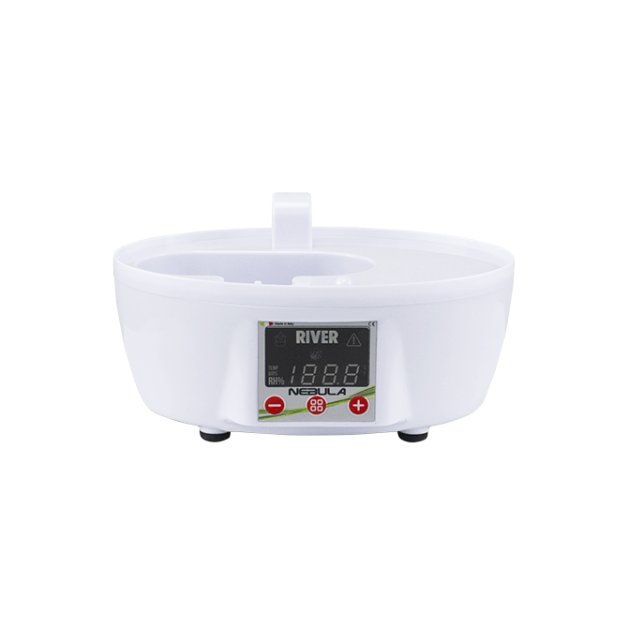

• Complete base equipped with a safety float which signals, via the icon on the display, the lack of water. A centrifugal fan channels the water microdroplets from NEBULA® into the incubator
• Non-slip feet.

Would you like to know more about our nebulizer?

Contact us without delay, with the specialists of Terwagne Elevage, via the online contact form. Our professionals are at your service and available to answer your questions and requests of all kinds. Expert for many years in the poultry farming sector, our store in Ciney also provides you with a repair shop. We ensure the follow-up and guarantee of our equipment.
