Suevia Water Trough Stainless Steel

Main Features

1. Capacity and Flow Rate:

• Model 1100: High flow rate up to 20 liters per minute at 3 bars.
• Model 1220-VA¾": Adjustable flow rate up to 12 liters per minute thanks to an integrated adjustment screw.

2. Materials:

• Stainless steel tank resistant to shocks and corrosion.
• Anti-drip edge to prevent splashes and limit water loss.
• Tubular valve in brass (Model 1100) or stainless steel (Model 1220-VA¾"), ensuring a continuous and gentle water release.

3. Installation:

• Model 1100: ½" male connection from the top, with an enameled cast iron mounting for stable installation.

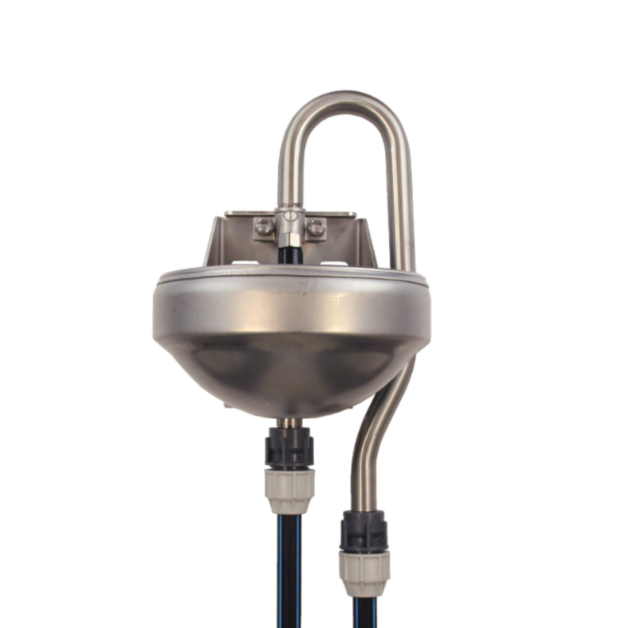

• Model 1220-VA¾": ¾" female connection from top and bottom, compatible with a loop circuit thanks to a mounting kit (ref. 103.1983).

4. Compatibility:

• Suitable for dairy cows, cattle, and horses.
• Mounting on poles, walls, or 90° angles for maximum flexibility.

5. Maintenance:

• Robust and detachable design for simplified cleaning.
• Resistant to acidic environments and demanding farming conditions.

Advantages

• Exceptional Durability: Stainless steel materials and sturdy welds ensure long life even in intensive environments.
• Water Savings: Thanks to the anti-drip edge, these water troughs reduce waste while maintaining a constant flow.
• Animal Comfort: The gentle valve encourages animals to drink regularly, contributing to their well-being and health.
• Easy Installation and Maintenance: Multidirectional mounting and connection systems ensure quick setup and versatile use.

Technical Specifications

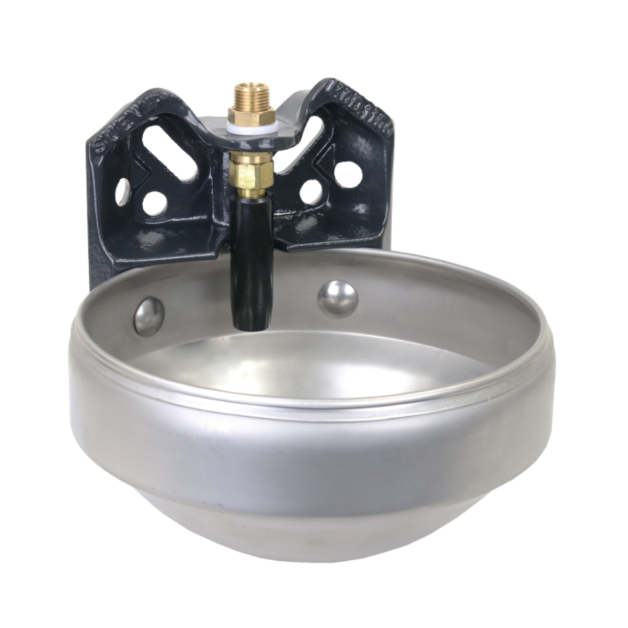

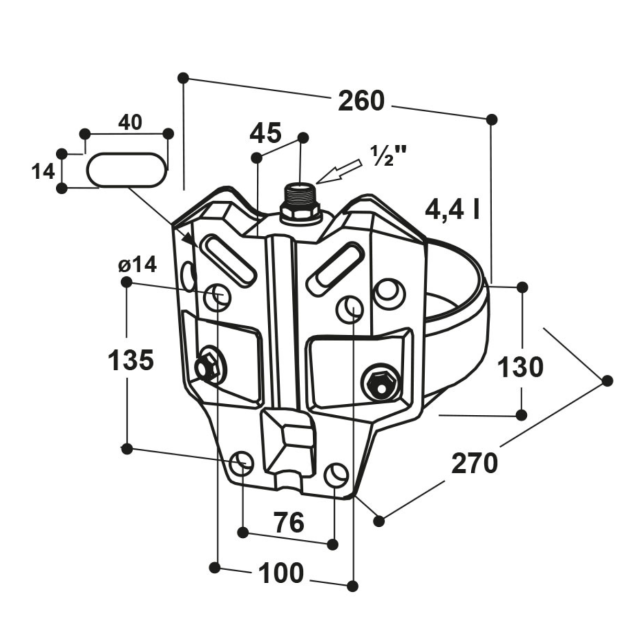

Model 1100:

• Maximum Flow Rate: 20 l/min at 3 bars.
• Connection: ½" male from the top.
• Dimensions: Diameter 220 mm x Height 130 mm.
• Tank Material: Stainless steel.
• Valve Type: Tubular brass.
• GTIN Code: 4025338000672.

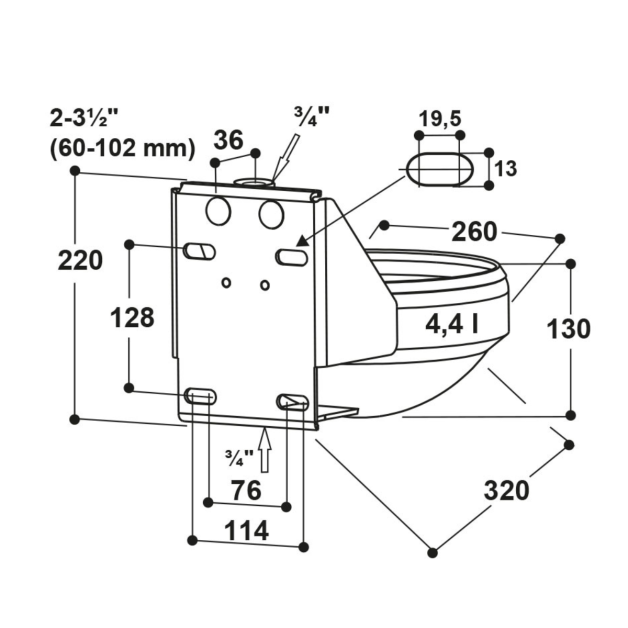

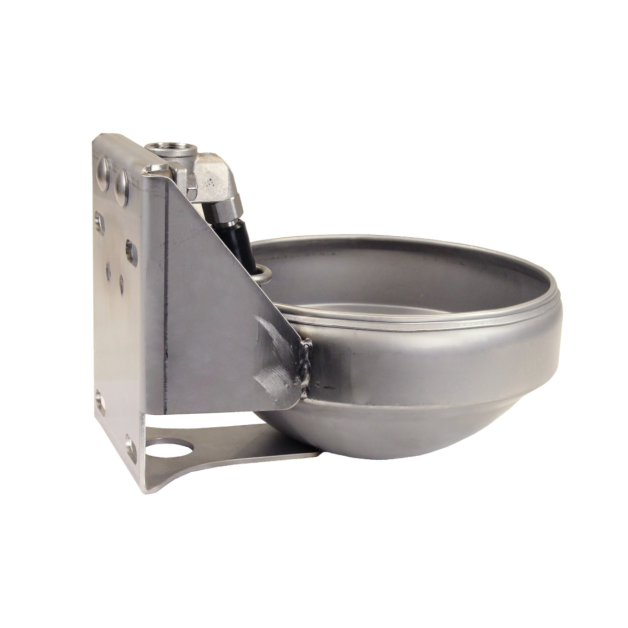

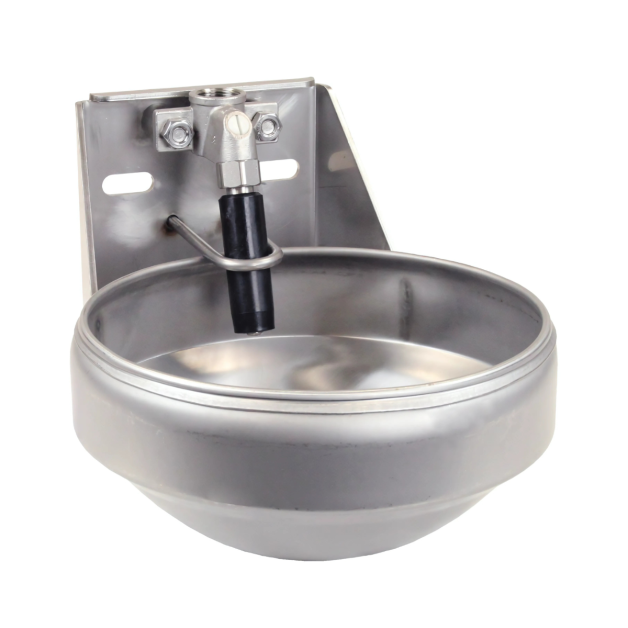

Model 1220-VA¾":

• Maximum Flow Rate: 12 l/min at 3 bars.
• Connection: ¾" female from the top and bottom (with kit for loop circuit).
• Dimensions: Length 320 mm x Width 220 mm x Height 130 mm.
• Tank Material: Stainless steel.
• Valve Type: Tubular stainless steel.
• GTIN Code: 4025338120585.

With these models, choose a reliable and high-performance solution for your livestock, while ensuring comfort and convenience for your animals.
